Product Summary

The LQW15AN18NH00D is a Chip Inductor (Chip Coil) for High Frequency Horizontal Wire Wound.

Parametrics

LQW15AN18NH00D absolute maximum ratings: (1)inductance: 18nH±3%; (2)test frequency: 100MHz; (3)rated current: 370mA; (4)max of DC resistance: 0.27ohm; (5)Q (min): 25; (6)test frequency: 250MHz; (7)self resonance frequency (min): 4.5GHz.

Features

LQW15AN18NH00D features: (1)Inductance: 18nH; (2)Tolerance: ±3%; (3)Current: 370mA; (4)Mounting Type: Surface Mount; (5)Q @ Freq: 25 @ 250MHz; (6)Frequency - Self Resonant: 4.5GHz; (7)DC Resistance (DCR): 270 mOhm Max; (8)Shielding: Unshielded; (9)Applications: High Frequency; (10)Lead Free Status: Lead Free; (11)RoHS Status: RoHS Compliant.

Diagrams

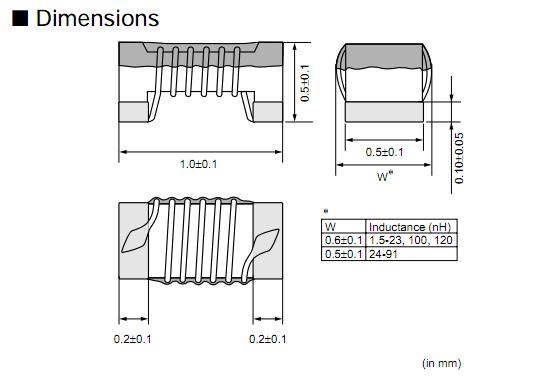

LQW15AN18NH00D dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LQW15AN18NH00D
LQW15AN18NH00D
Murata
RF Inductors 0402 18nH +/-3% DCR 0.27ohm
Data Sheet
0-1: $0.17
1-50: $0.15
50-100: $0.14
100-1000: $0.09
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LQW15AN10NG00D
LQW15AN10NG00D
Murata
RF Inductors 10 NH +-.2NH
Data Sheet
0-1: $0.17
1-10000: $0.08
10000-20000: $0.08
20000-30000: $0.07
LQW15AN10NH00D
LQW15AN10NH00D
Murata
RF Inductors 0402 10nH +/-3% DCR 0.17ohm
Data Sheet
0-1: $0.17
1-50: $0.15
50-100: $0.14
100-1000: $0.09
LQW15AN10NJ00D
LQW15AN10NJ00D
Murata
RF Inductors 10 NH 5%
Data Sheet
0-1: $0.16
1-50: $0.14
50-100: $0.13
100-500: $0.10
LQW15AN11NG00D
LQW15AN11NG00D
Murata
RF Inductors 11 NH +-.2NH
Data Sheet
0-1: $0.17
1-10000: $0.08
10000-20000: $0.08
20000-30000: $0.07
LQW15AN11NH00D
LQW15AN11NH00D
Murata
RF Inductors 11nH 3% 100MHz
Data Sheet
0-1: $0.17
1-50: $0.15
50-100: $0.14
100-1000: $0.09
LQW15AN11NJ00D
LQW15AN11NJ00D
Murata
RF Inductors 11nH 5% 100MHz
Data Sheet
0-1: $0.16
1-50: $0.14
50-100: $0.13
100-500: $0.10
