The LQW18AN6N8D00D is a Chip Coil for High Frequency Horizontal Wire Wound. The applications of the device include High frequency circuits of mobile phones such as PA, ANT, VCO, SAW, etc, Mobile phones such as GSM, CDMA, PDC, etc, "Bluetooth", W-LAN and High frequency circuits in general.
Parametrics
LQW18AN6N8D00D absolute maximum ratings: (1)inductance: 6.8nH±0.5nH; (2)test frequency: 100MHz; (3)rated current: 750mA; (4)max of DC resistance: 0.082ohm; (5)Q (min): 35; (6)test frequency: 250MHz; (7)self resonance frequency (min): 6000MHz.
Features

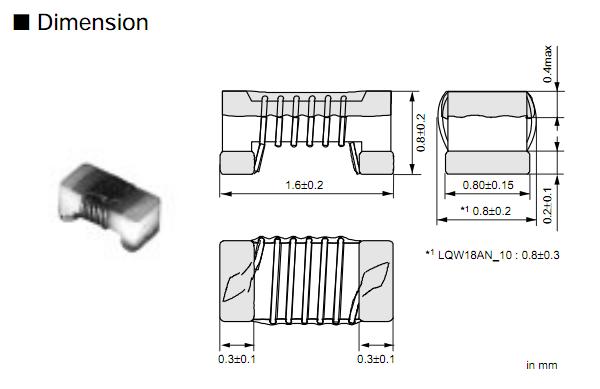

LQW18AN6N8D00D features: (1)Broad range of inductance (2.2nH to 470nH) with E24 step line up; (2)Horizontal wire wound structure enables tight inductance tolerance (+-0.2nH, +-2%). Stable circuit operation is possible; (3)The subminiature dimensions (1.6x0.8mm) allow high density mounting; (4)The high self resonant frequency realizes high Q value and stable inductance at high frequency; (5)Low DC resistance design is ideal for low loss, high output and low power consumption; (6)Resin-coated surface enables excellent mounting.
