Product Summary

The RS1M is a Fast Rectifier.

Parametrics

RS1M absolute maximum ratings: (1)VRRM, Maximum Repetitive Reverse Voltage: 1000V; (2)IF(AV), Average Rectified Forward Current: 1.0 A; (3)IFSM, Non-Repetitive Peak Forward Surge Current: 30 A; (4)TSTG, Storage Temperature Range: -55 to +150℃; (5)TJ, Operating Junction Temperature: -55 to +150℃.

Features

RS1M features: (1)Glass passivated junction; (2)For surface mounted applications; (3)Built in strain relief, ideal for automated placement; (4)UL certified with UL certificate # E326243.

Diagrams

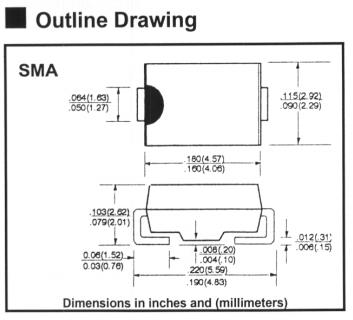

RS1M outline drawing

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RS1M
RS1M
Fairchild Semiconductor
Rectifiers 1000V 1a Fast Rect SMa
Data Sheet
0-1: $0.23
1-25: $0.17
25-100: $0.10
100-250: $0.07
