Product Summary
The LQW18AN10NJ00D is a Chip inductor for High Frequency Horizontal Wire Wound. It consists of air core chip coil using a miniature alumina core. The LQW18AN10NJ00D has high Q value in high frequency range and high self resonant frequency. It is suitable for high frequency circuits which are used in telecommunications equipment.
Parametrics
LQW18AN10NJ00D absolute maximum ratings: (1)Inductance: 10nH; (2)Tolerance: ±5%; (3)Package / Case: 0603 (1608 Metric); (4)Current: 650mA; (5)Mounting Type: Surface Mount; (6)Q @ Freq: 35 @ 250MHz; (7)Frequency - Self Resonant: 6GHz; (8)DC Resistance (DCR): 110 mOhm Max; (9)Shielding: Unshielded; (10)Applications: High Frequency; (11)Lead Free Status: Lead Free; (12)RoHS Status: RoHS Compliant.
Features

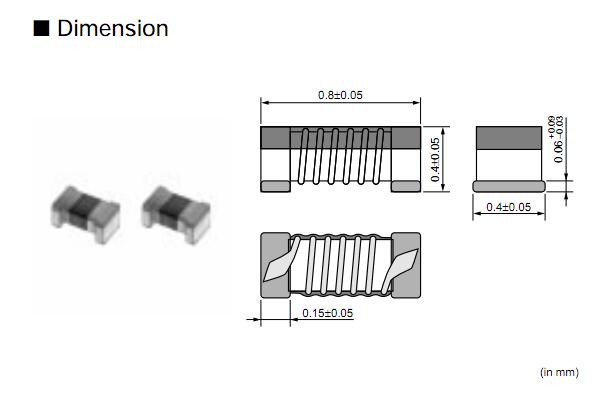

LQW18AN10NJ00D features:(1)Horizontal wire wound structure; (2)The subminiature dimensions (0.8x0.4mm) allow high density mounting, and 0.4mm low profile; (3)The high self resonant frequency realizes high Q value and stable inductance at high frequency; (4)Low DC resistance design is ideal for low loss, high output and low power consumption; (5)Resin-coated surface enables excellent mounting.
