Product Summary
The NC7WP08L8X is a dual 2-input AND Gate. Ideal for applications where battery life is critical, this product is designed for ultra low power consumption within the VCC operating range of 0.9V to 3.6V VCC. The internal circuit is composed of a minimum of inverter stages including the output buffer, to enable ultra low static and dynamic power. The NC7WP08L8X is designed for optimized power and speed, and is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining extremely low CMOS power dissipation.
Parametrics
NC7WP08L8X absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to +4.6V; (2)DC Input Voltage (VIN): -0.5V to +4.6V; (3)DC Output Voltage (VOUT), HIGH or LOW State: -0.5V to VCC +0.5V; VCC = 0V: -0.5V to 4.6V; (4)DC Input Diode Current (IIK) VIN < 0V: ±50 mA; (5)DC Output Diode Current (IOK), VOUT < 0V: -50 mA; VOUT > VCC: +50 mA; (6)DC Output Source/Sink Current (IOH/IOL): ± 50 mA; (7)DC VCC or Ground Current per Supply Pin (ICC or Ground): ± 50 mA; (8)Storage Temperature Range (TSTG): -65 to +150℃.
Features
NC7WP08L8X features: (1)Space saving US8 package; (2)Ultra small MicroPak Pb-free package; (3)0.9V to 3.6V VCC supply operation; (4)3.6V overvoltage tolerant I/O’s at VCC from 0.9V to 3.6V; (5)tPD: 2.5 ns typ for 3.0V to 3.6V VCC; 5.0 ns typ for 2.3V to 2.7V VCC; 6.0 ns typ for 1.65V to 1.95V VCC; 7.0 ns typ for 1.40V to 1.60V VCC; 11.0 ns typ for 1.10V to 1.30V VCC; 27.0 ns typ for 0.90V VCC; (6)Power-Off high impedance inputs and outputs; (7)Static Drive (IOH/IOL): ±2.6 mA @ 3.00V VCC; ±2.1 mA @ 2.30V VCC;±1.5 mA @ 1.65V VCC; ±1.0 mA @ 1.40V VCC; ±0.5 mA @ 1.10V VCC; ±20 μA@ 0.9V VCC; (8)Low noise switching using design techniques of Quiet Series noise/EMI reduction circuitry; (9)Ultra low dynamic power.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

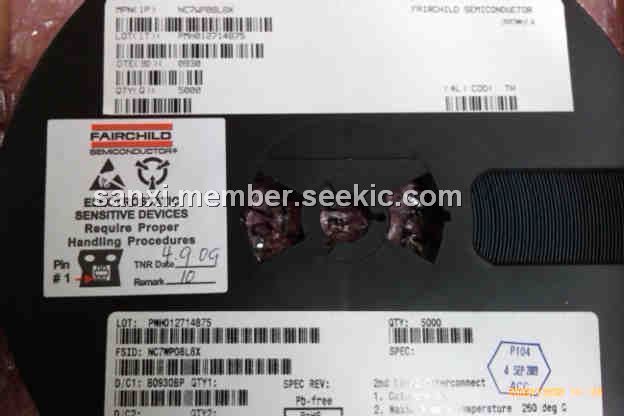

 NC7WP08L8X |
Fairchild Semiconductor |
Gates (AND / NAND / OR / NOR) Dl 2-Inp AND Gate |
Data Sheet |
|
|
||||||||||||
