Product Summary

The LQP15MN3N3B02D is a Chip Inductor (Chip Coil) for High Frequency Film Type.

Parametrics

LQP15MN3N3B02D absolute maximum ratings: (1)inductance: 3.3nH±2%; (2)test frequency: 500MHz; (3)rated current: 190mA; (4)max of DC resistance: 0.4ohm; (5)Q (min): 13; (6)test frequency: 500MHz; (7)self resonance frequency (min): 6000MHz.

Features

LQP15MN3N3B02D features: (1)Inductance: 3.3nH; (2)Tolerance: ±0.1nH; (3)Package / Case: 0402 (1005 Metric); (4)Current: 190mA; (5)Mounting Type: Surface Mount; (6)Q @ Freq: 13 @ 500MHz; (7)Frequency - Self Resonant: 6GHz; (8)DC Resistance (DCR): 400 mOhm Max; (9)Shielding: Unshielded; (10)Applications: High Frequency; (11)Lead Free Status: Lead Free; (12)RoHS Status: RoHS Compliant.

Diagrams

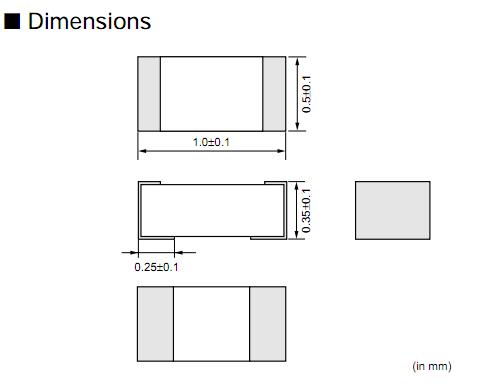

LQP15MN3N3B02D dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LQP15MN3N3B02D
LQP15MN3N3B02D
Murata
RF Inductors 3.3nH 0402
Data Sheet
0-1: $0.08
1-50: $0.08
50-100: $0.07
100-500: $0.05
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
