Product Summary

The LQP15MN33NG02D is a Chip Inductor for High Frequency Film Type.

Parametrics

LQP15MN33NG02D absolute maximum ratings: (1)inductance: 33nH±2%; (2)test frequency: 500MHz; (3)rated current: 60mA; (4)max of DC resistance: 3.8ohm; (5)Q (min): 13; (6)test frequency: 500MHz; (7)self resonance frequency (min): 2100MHz.

Features

LQP15MN33NG02D features: (1)Inductance: 33nH; (2)Tolerance: ±2%; (3)Package/Case: 0402 (1005 Metric); (4)Current: 60mA; (5)Mounting Type: Surface Mount; (6)Q @ Freq: 13 @ 500MHz; (7)Frequency - Self Resonant: 2.1GHz; (8)DC Resistance (DCR): 3.8 Ohm Max; (9)Shielding: Unshielded; (10)Applications: High Frequency; (11)Lead Free Status: Lead Free; (12)RoHS Status: RoHS Compliant.

Diagrams

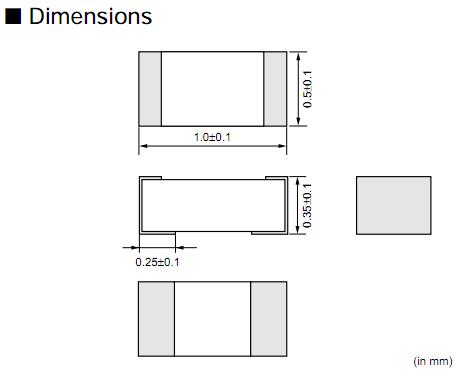

LQP15MN33NG02D dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LQP15MN33NG02D
LQP15MN33NG02D
Murata
RF Inductors 33nH 0402
Data Sheet
0-1: $0.08
1-50: $0.08
50-100: $0.07
100-500: $0.07
