Product Summary

The LQW15AN2N7C00D is a Chip Inductor (Chip Coil) for High Frequency Horizontal Wire Wound.

Parametrics

LQW15AN2N7C00D absolute maximum ratings: (1)inductance: 2.7nH±0.2nH; (2)test frequency: 100MHz; (3)rated current: 850mA; (4)max of DC resistance: 0.05ohm; (5)Q (min): 20; (6)test frequency: 250MHz; (7)self resonance frequency (min): 15.0GHz.

Features

LQW15AN2N7C00D features: (1)Inductance: 2.7nH; (2)Tolerance: ±0.2nH; (3)Current: 850mA; (4)Mounting Type: Surface Mount; (5)Q @ Freq: 20 @ 250MHz; (6)Frequency - Self Resonant: 15GHz; (7)DC Resistance (DCR): 50 mOhm Max; (8)Shielding: Unshielded; (9)Applications: High Frequency; (10)Lead Free Status: Lead Free; (11)RoHS Status: RoHS Compliant.

Diagrams

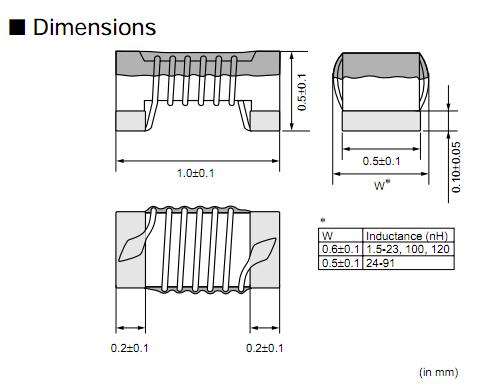

LQW15AN2N7C00D dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LQW15AN2N7C00D
LQW15AN2N7C00D
Murata
RF Inductors 2.7 NH +-.2NH
Data Sheet
0-1: $0.17
1-100: $0.13
100-500: $0.11
500-1000: $0.09
