Product Summary
The LM324PT is a low power quad op amp which consists of four independent, high-gain, internally frequency compensated operational amplifiers designed specifically to operate from a single power supply over a wide range of voltages. The unity gain crossover frequency and the input bias current are temperature-compensated.
Parametrics
LM324PT absolute maximum ratings: (1)Supply voltage: 32 or ±16 VDC; (2)Differential input voltage: 32 VDC; (3)Input voltage: -0.3 to +32 VDC; (4)Maximum power dissipation,TA=25℃ (still-air): N package, 1420 mW; F package 1190 mW; D package 1040 mW; (5)Output short-circuit to GND one amplifier, VCC<15VDC and TA=25℃: Continuous; (6)Input current (VIN<-0.3V): 50 mA; (7)Operating ambient temperature range: 0 to +70℃; (8)Storage temperature range -65 to +150 ℃; (9)Lead soldering temperature (10sec max): 300℃.
Features
LM324PT features: (1)Wide gain bandwidth: 1.3MHz; (2)Input common-mode voltage range includes ground; (3)Large voltage gain: 100dB; (4)Very low supply current/ampli: 375μA; (5)Low input bias current: 20nA; (6)Low input offset voltage: 5mV max. (for more accurate applications, use the equivalent parts LM124A-LM224A-LM324A which feature 3mV max.); (7)Low input offset current: 2nA; (8)Wide power supply range: Single supply: +3V to +30V; Dual supplies: ±1.5V to ±15V.

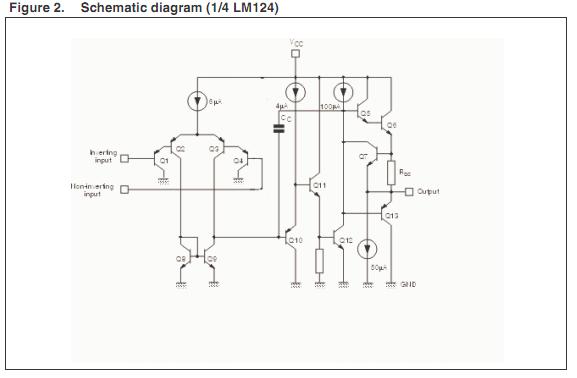

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM324PT |
STMicroelectronics |
Operational Amplifiers - Op Amps Quad Low Power |
Data Sheet |
|
|
||||||||||||
