Product Summary
The L79L05ABZ-AP is a three-terminal positive regulator. If adequate heatsink is provided, the L79L05ABZ-AP can deliver up to 100 mA output current. The device is intended as fixed voltage regulators in a wide range of applications including local or on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, the L79L05ABZ-AP can be used with power pass elements to make high-current voltage regulators.
Parametrics
L79L05ABZ-AP absolute maximum ratings: (1)Vi, DC InputVoltage: -30V when Vo = -5 V to -9 V; -35V when Vo = -12V to -15 V; (2)Io, OutputCurrent: 100 mA; (3)Tstg, Storage Temperature Range: - 40 to 150℃; (4)Top, Operating Junction Temperature Range: -40 to 125℃.
Features
L79L05ABZ-AP features: (1)output current up to 100 mA; (2)output voltagesof -5; -6; -8; -9; -12; -15V; (3)thermal overloadprotection; (4)short circuit protection; (5)noexternal components are required; (6)availablein either± 5%(AC) or ± 10% (C) selection.

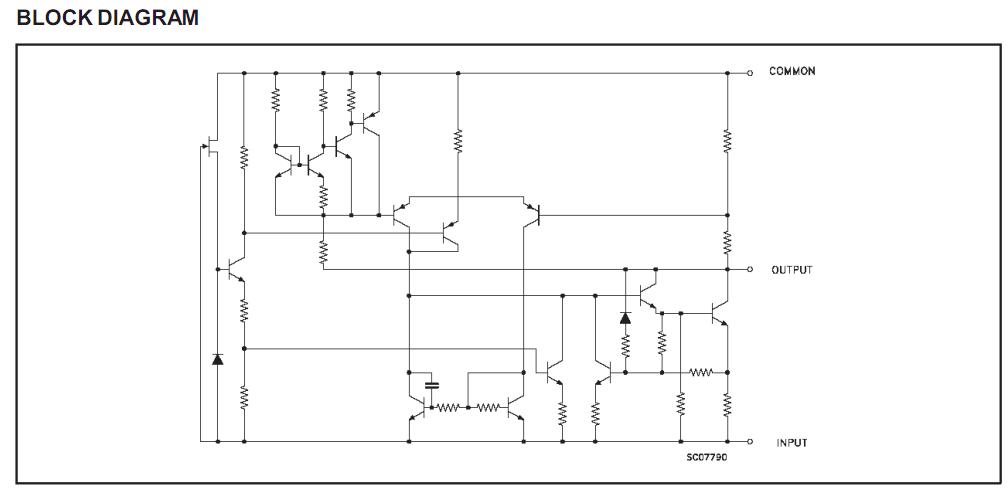

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 L79L05ABZ-AP |
STMicroelectronics |
Linear Regulators - Standard 5.0V 0.1A Negative Industrial Temp |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
L79L00 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
L79L05ABD |
STMicroelectronics |
Linear Regulators - Standard 5.0V 0.1A Negative |
Data Sheet |
Negotiable |
|
||||||||||||
|
L79L05ABD13TR |
STMicroelectronics |
Linear Regulators - Standard 5.0V 0.1A Negative |
Data Sheet |
|
|
||||||||||||
|
L79L05ABUTR |
STMicroelectronics |
Linear Regulators - Standard 5.0V 0.1A Negative |
Data Sheet |
|
|
||||||||||||
|
L79L05ABZ |
STMicroelectronics |
Linear Regulators - Standard 5.0V 0.1A Negative |
Data Sheet |
Negotiable |
|
||||||||||||
|
L79L05ABZ-AP |
STMicroelectronics |
Linear Regulators - Standard 5.0V 0.1A Negative Industrial Temp |
Data Sheet |
|
|
||||||||||||
