Product Summary

The LQW15AN5N1C00D is a Chip Inductor (Chip Coil) for High Frequency Horizontal Wire Wound.

Parametrics

LQW15AN5N1C00D absolute maximum ratings: (1)inductance: 5.1nH±0.2nH; (2)test frequency: 100MHz; (3)rated current: 600mA; (4)max of resistance: 0.12ohm; (5)Q (min): 250MHz; (6)self resonance frequency (min): 8.0GHz.

Features

LQW15AN5N1C00D features: (1)Inductance: 5.1nH; (2)Tolerance: ±0.2nH; (3)Package / Case: 0402 (1005 Metric); (4)Packaging: Tape & Reel (TR); (5)Type: Air Core; (6)Current: 600mA; (7)Mounting Type: Surface Mount; (8)Q @ Freq: 25 @ 250MHz; (9)Frequency - Self Resonant: 8GHz; (10)DC Resistance (DCR): 120 mOhm Max; (11)Shielding: Unshielded; (12)Applications: High Frequency; (13)Lead Free Status: Lead Free; (14)RoHS Status: RoHS Compliant.

Diagrams

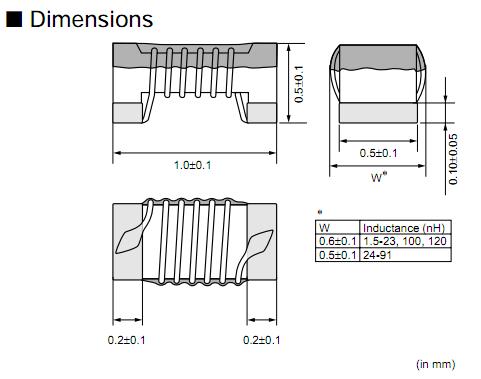

LQW15AN5N1C00D dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LQW15AN5N1C00D
LQW15AN5N1C00D
Murata
RF Inductors 5.1 NH +-.3NH
