74LV4051D

analog multiplexer/demultiplexer, 16SOIC, –0.5 to +7.0 V, 20 mA, 750 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.13~0.15 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.13~0.15

PartNumber:: 74LV4051D

Brand:: NXP Semiconductors - nxp | Pack: SOIC | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Brian's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-15

From Other Seller

Part Number:74LV4051D
US $0.13 - 0.15
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

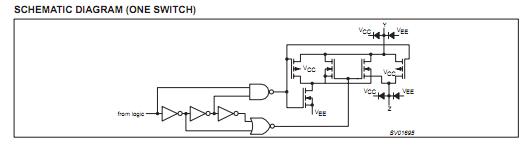

The 74LV4051D is an 8-channel analog multiplexer/demultiplexer with three digital select inputs (S0 to S2) an active LOW enable input (E), eight independent inputs/outputs (Y0 to Y7) and a common input/output (Z). With E LOW, one of the eight switches is selected (low impedance ON-state) by S0 to S2. With E HIGH, all switches are in the high impedance OFF-state, independent of S0 to S2. VCC and GND are the supply voltage pins for the digital control inputs (S0 to S2, and E). The VCC to GND ranges are 1.0 to 6.0 V. The 74LV4051D’analog inputs/outputs (Y0 to Y7 and Z) can swing between VCC as a positive limit and VEE as a negative limit. VCC - VEE may not exceed 6.0 V. For operation as a digital multiplexer/demultiplexer, VEE is connected to GND (typically ground).

Parametrics

74LV4051D absolute maximum ratings: (1)VCC, DC supply voltage: –0.5 to +7.0 V; (2)±IIK, DC input diode current: 20 mA; (3)±ISK, DC switch diode current: 20 mA; (4)±IS, DC switch current: 25 mA; (5)Tstg, Storage temperature range: –65 to +150℃; (6)PTOT, Power dissipation per package: 750 mW.

Features

74LV4051D features: (1)Optimized for low voltage applications: 1.0 to 6.0 V; (2)Accepts TTL input levels between VCC = 2.7 V and VCC = 3.6 V; (3)Low typ ON resistance: 60 Ω at Vcc – VEE = 4.5 V; 90 Ω at Vcc – VEE = 3.0 V; 145 Ω at Vcc – VEE = 2.0 V; (4)Logic level translation: to enable 3 V logic to communicate with ± 3 V analog signals; (5)Typical break before make built in; (6)Output capability: non-standard; (7)ICC category: MSI.
